Z21 Precision Cutting Blade for Digital Cutters

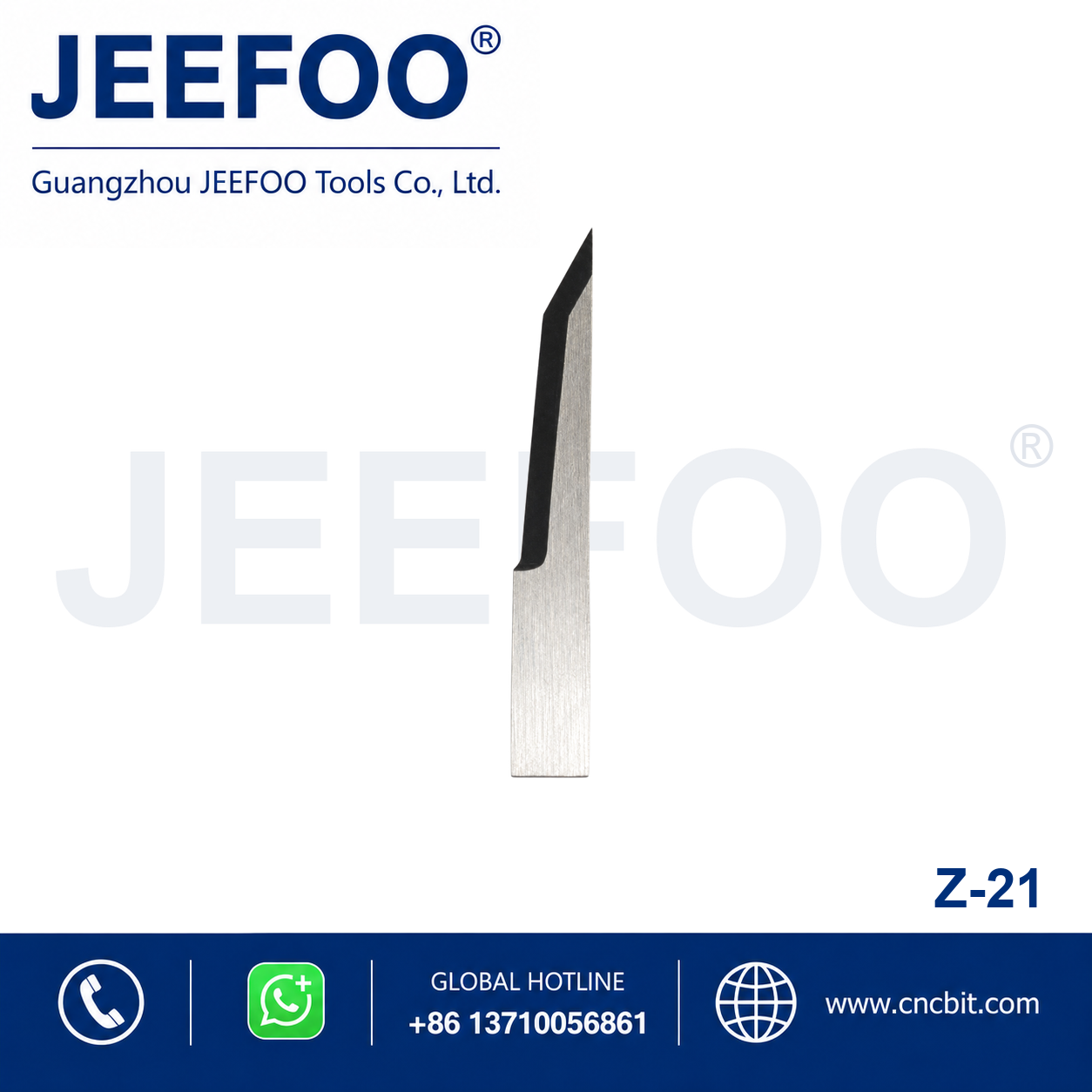

Z21 Precision Cutting Blade for Digital Cutters product image

Z21 Precision Cutting Blade for Digital Cutters is a digital cutting knife replacement blade for compatible CNC and digital cutting equipment. Its precision-ground geometry supports controlled cutting when the blade, holder and material are correctly matched. This page focuses on precision cutting with a matched machine setup and the checks buyers and operators need before ordering or production.

On this page: product overview · cutting benefits · selection · test cutting · buyer questions.

Z21 Product Overview

  • Model: Z21.
  • Series: Z Series.
  • Product type: Digital cutting knife replacement blade.
  • Selection: confirm the holder interface, blade dimensions, cutting direction and required depth.
  • Supply: JEEFOO Tools, Guangzhou, Guangdong, China; product identification and export support.

Z21: Precision Cutting with a Matched Machine Setup

Precision-ground cutting geometry supports controlled penetration and accurate programmed work. The result still depends on the holder, material support and tool settings. Check blade seating and compare a representative test piece with the drawing. Use the measured result to approve the process rather than treating the model name as a guarantee of a particular tolerance.

  • Precision-ground geometry supports clean edges and detailed programmed paths.
  • Stable blade construction supports routine production and sample assessment.
  • Compact replacement design supports inspection, installation and planned maintenance.

Selecting the Z21 Cutting Blade

Match the Z21 reference with your machine documentation and existing holder. Confirm the interface, dimensions, cutting direction and target depth before ordering. The model code alone does not establish suitability for every machine or sheet material. Share a blade drawing or measured reference if the existing part cannot be identified confidently.

Material density, thickness, surface coating and backing can change the required setup. Confirm the intended application with the equipment instructions and an approved test. A digital cutting knife is not automatically an oscillating knife; use the blade with the cutting method and holder specified for the equipment.

Z21 Setup and Test-Cut Checklist

  1. Isolate power and install the blade according to the machine and holder instructions.
  2. Inspect the clamp, cutting surface and blade seating; remove residue before adjustment.
  3. Use conservative starting settings from the equipment instructions and secure a representative material sample.
  4. Cut straight sections, curves and corners that represent the intended part.
  5. Inspect penetration, edge quality and finished dimensions; adjust one parameter at a time.
  6. Record the accepted blade exposure, pressure, speed and offset for the next setup.

Cutting Quality and Routine Care

Insufficient exposure may leave the sheet partly connected, while excessive exposure can reduce stability. If tearing, drag marks or inconsistent depth develops, inspect the blade, holder and material support before increasing pressure. Check the edge at planned intervals and replace a damaged or worn blade according to the approved maintenance procedure.

Follow the machine instructions and applicable machine-guarding guidance. Isolate power before handling or adjustment. Clean and dry the removed blade using a suitable method, protect its cutting edge from impact and keep it in a clearly labeled container.

Z21 Buyer Questions

Does the blade alone determine cutting accuracy?

No. Holder condition, material movement, cutting support, blade exposure and machine settings all affect the finished part. Validate the complete setup against the required drawing.

What information is needed to order Z21?

Provide the Z21 model reference, machine model, holder reference, blade dimensions, material and thickness, required cutting depth and order quantity. These details allow the supplier to review the application without assuming unverified compatibility.

What is the expected blade life?

Blade life varies with the material, coating, support surface, settings and maintenance. Establish a replacement interval from the approved cutting process and observed edge condition; this listing does not specify a universal service-life figure.

Ordering and Application Support

JEEFOO Tools supports product identification and export enquiries from Guangzhou, Guangdong, China. Contact JEEFOO with your application details, or compare the Z71 Precision Digital Cutting Knife Blade. Related models are comparison references and should not be treated as interchangeable replacements.
